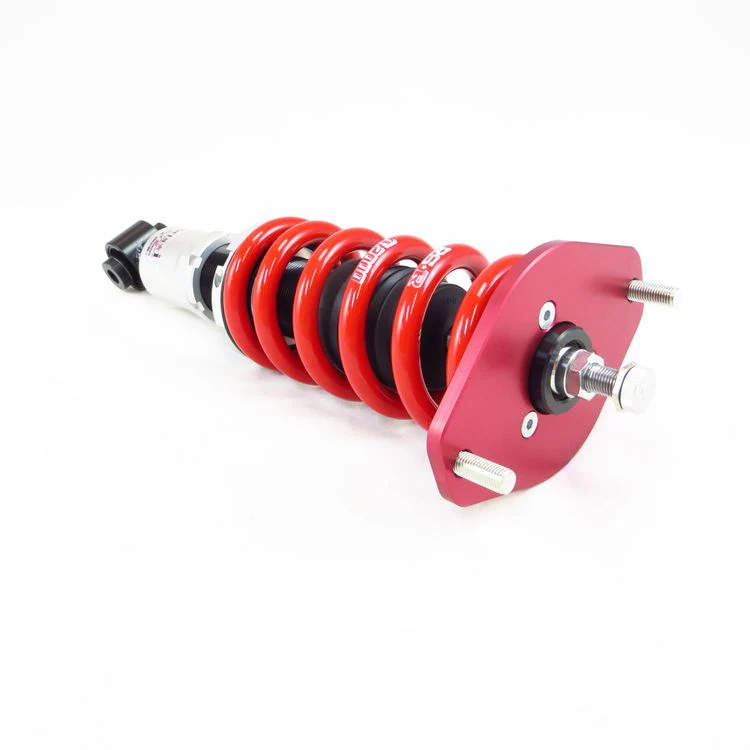

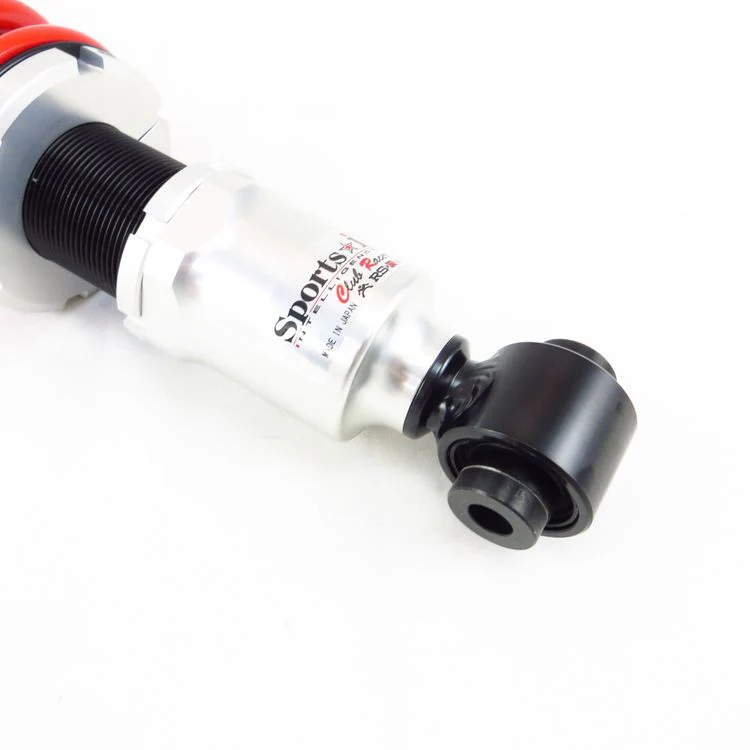

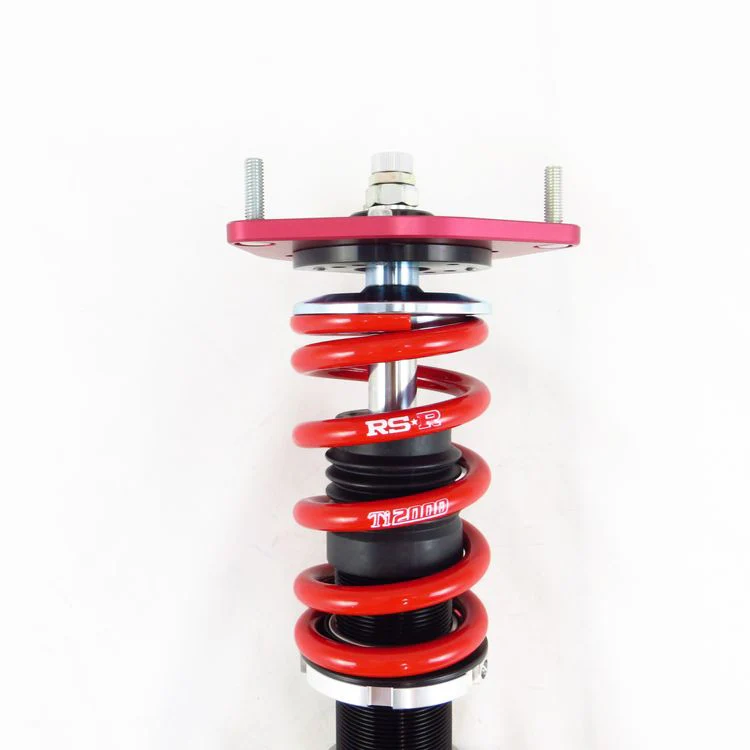

RS-R Subaru BR-Z 2022+ SPORTS*I CLUB RACER

Fine tuned for competition, our RS-R Club Racer Series offers unquestionable performance with its track dedicated setup.

Product Details

**Part Number:**XNSPF069MP Compatibility: 2022+ Subaru BR-Z Chassis code: ZD8

Preset Approximate Height: Automatic

Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -15mm to -20mm (-0.6in to -0.8in)

Maximum Adjustment Range: Automatic

Front: +15mm to -75mm (+0.6in to -3.0in) Rear: +35mm to -60mm (+1.4in to -2.4in)

Recommended Adjustment Range: Automatic

Front: +5mm to -40mm (+0.2in to -1.6in) Rear: +5mm to -40mm (+0.2in to -1.6in)

Preset Approximate Height: 6 Speed Manual

Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -20mm to -25mm (-0.8in to -1.0in)

Maximum Adjustment Range: 6 Speed Manual

Front: +15mm to -75mm (+0.6in to -3.0in) Rear: +35mm to -65mm (+1.4in to -2.6in)

Recommended Adjustment Range: 6 Speed Manual

Front: +5mm to -40mm (+0.2in to -1.6in) Rear: +5mm to -45mm (+0.2in to -1.8in)

Spring Rate: Both

Front: 9.00kg/mm Rear: 10.0kg/mm

Additional Information

Dampers are 36 way adjustable in the front and the rear Warranty: 1 Year / 12,000 miles from the day of purchase
