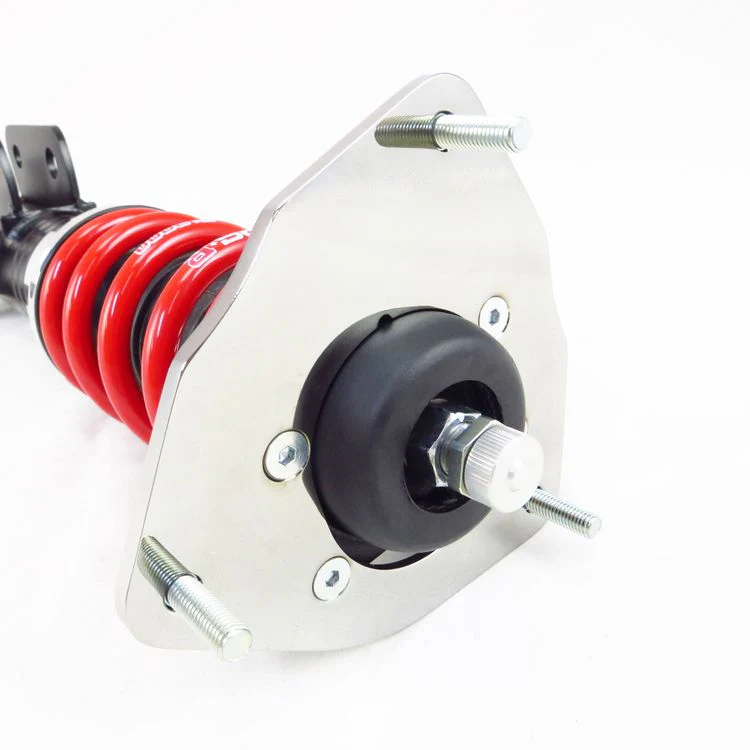

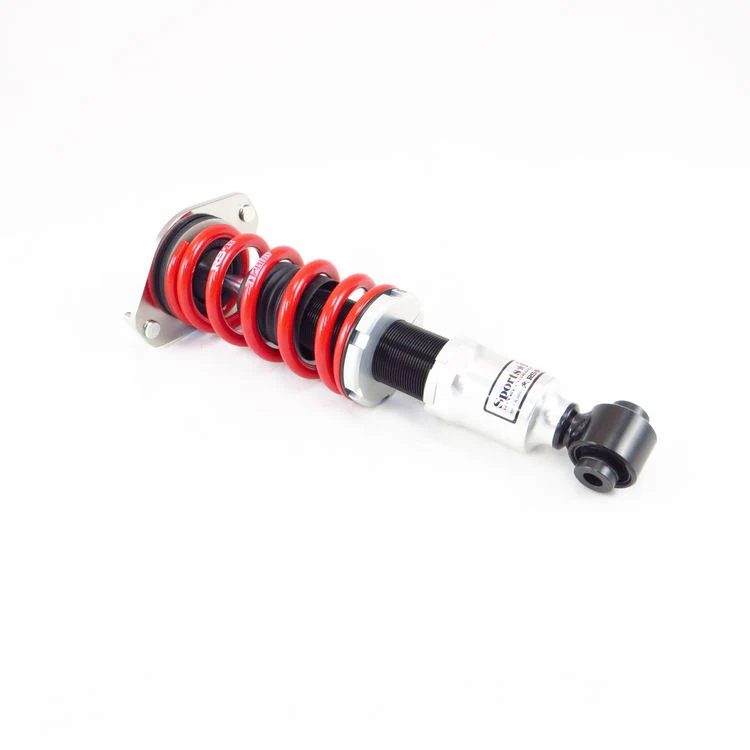

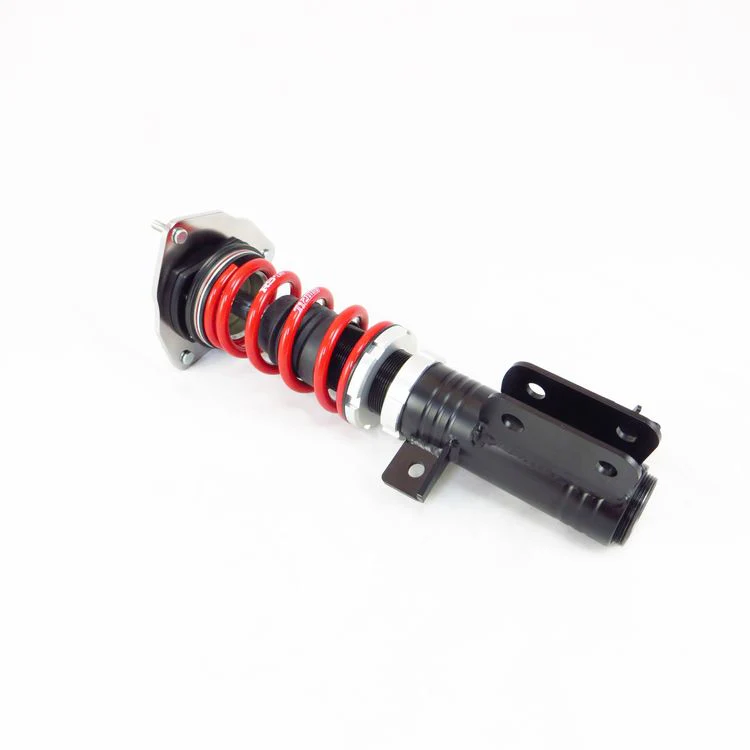

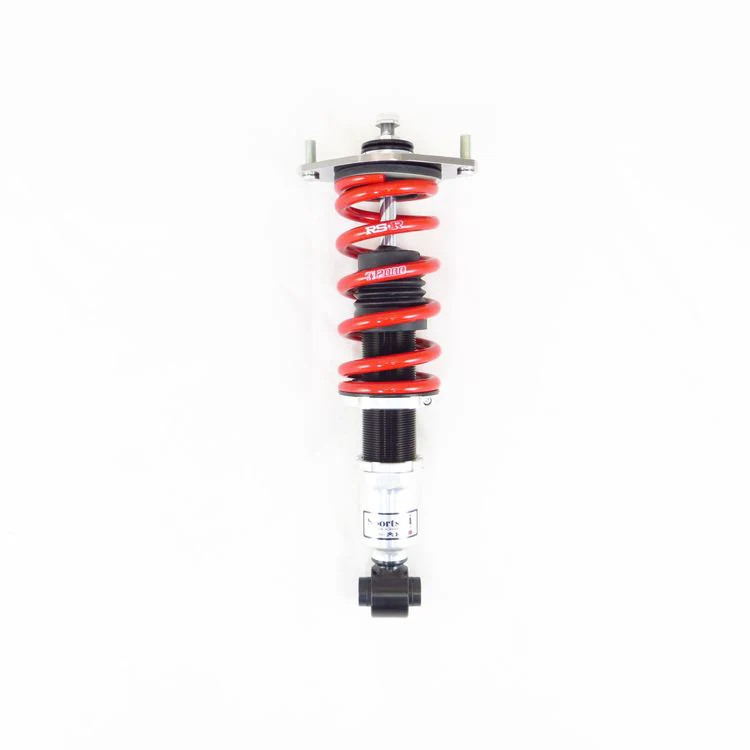

RS-R Subaru BRZ 2022+ Sports-i Coilover

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Product Details

Part Number: XBIF067M Compatibility: 2022+ Subaru BRZ Chassis code: ZD8

Preset Approximate Height: 6 Speed Manual

Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -20mm to -25mm (-0.8in to -1.0in)

Maximum Adjustment Range: 6 Speed Manual

Front: +20mm to -35mm (+0.8in to -1.4in) Rear: +35mm to -75mm (+1.4in to -3.0in)

Recommended Adjustment Range: 6 Speed Manual

Front: +10mmn to -35mm (+0.4in to -1.4in) Rear: +5mm to -40mm (+0.2in to -1.6in)

Preset Approximate Height: Automatic

Front: -15mm to -20mm (-0.6in to -0.8in) Rear: -25mm to -30mm (-1.0in to -1.2in)

Maximum Adjustment Range: Automatic

Front: +20mmn to -35mm (+0.8in to -1.4in) Rear: +30mm to -80mm (+1.2in to -3.2in)

Recommended Adjustment Range: Automatic

Front: +10mmn to -35mm (+0.4in to -1.4in) Rear: 0mm to -45mm (+0.2in to -1.8in)

Spring Rate: Both

Front: 6.00kg/mm Rear: 7.00kg/mm

Additional Information

Dampers are 36 way adjustable in the front and the rear Warranty: 1 Year / 12,000 miles from the day of purchase
