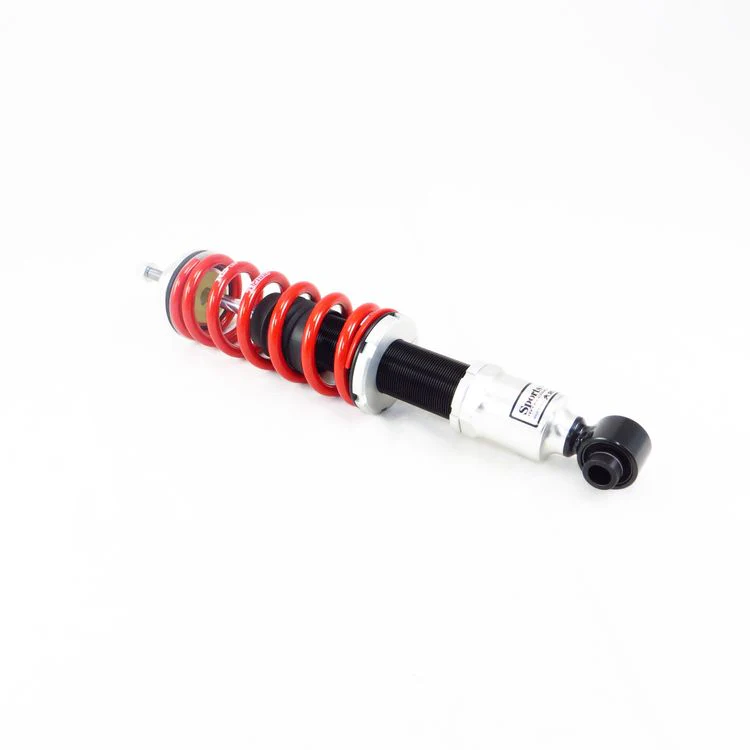

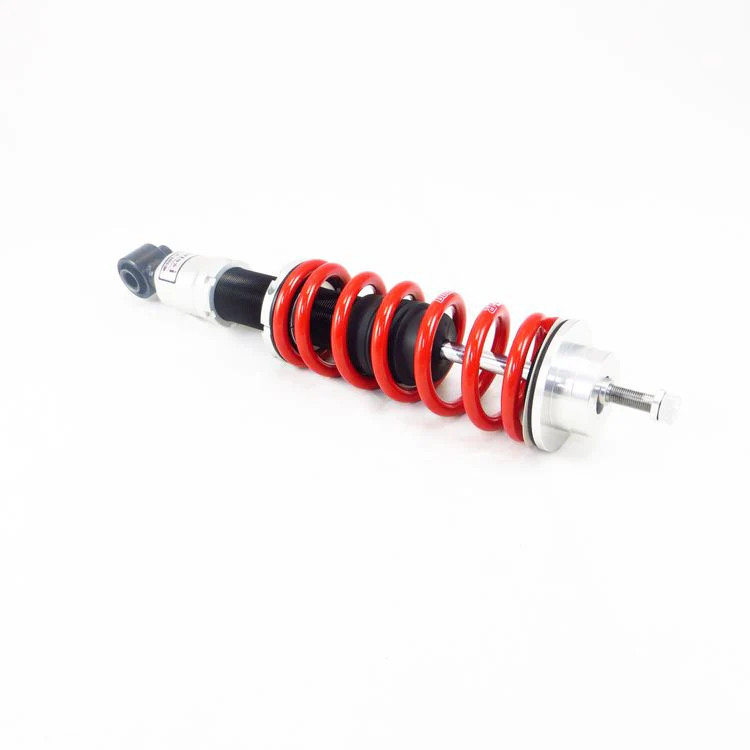

RS-R Toyota Prius AWD and Prius Prime FWD 2023+ Sports*i Coilover

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Product Details

Part Number: XBIT587M Compatibility: 2023+ Toyota Prius AWD and Prius Prime FWD Chassis code: MXWH65 / MXWH61

Preset Approximate Height (MXWH65, AWD)

Front: -25mm to -30mm (-1.0inch to -1.2inch) Rear: -25mm to -30mm (-1.0inch to -1.2inch)

Maximum Adjustment Range (MXWH65, AWD)

Front: +15mm to -50mm (+0.6inch to -2.0inch) Rear: +25mm to -65mm (+1.0inch to -2.6inch)

Recommended Adjustment Range (MXWH65, AWD)

Front: +5mm to -45mm (+0.2inch to -1.8inch) Rear: +5mm to -45mm (+0.2inch to -1.8inch)

Preset Approximate Height (MXWH61, Prime FWD)

Front: -20mm to -25mm (-0.8inch to -1.0inch) Rear: -20mm to -25mm (-0.8inch to -1.0inch)

Maximum Adjustment Range (MXWH61, Prime)

Front: +20mm to -50mm (+0.8inch to -2.0inch) Rear: +25mm to -70mm (+1.0inch to -2.8inch)

Recommended Adjustment Range (MXWH61, Prime FWD)

Front: 0mm to -45mm (0inch to -1.8inch) Rear: -5mm to -50mm (-0.2inch to -2.0inch)

Spring Rate

Front: 6.00kg/mm Rear: 6.00kg/mm

Additional Information

Dampers are 36 way adjustable in the front and rear Warranty: 1 Year / 12,000 miles from the day of purchase Factory rear upper mount needs to be re-used Dampening Dial for the front is at the bottom of the shock Coilover type for rear Included but not pictured: hex and allen wrench / mount adapter and upper rubber seat for rear / hex nut, bolt and washer for rear shock / water-proof rubber cover / spring tube for front and rear
